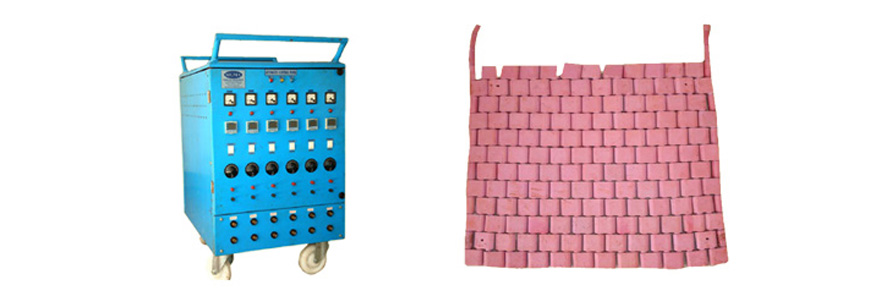

Low Voltage Heat Treatment


Features:

1) Input : 415 volts A.C. with Neutral 63 Amps. (max.)
2) Transformer Rating : 50 KVA
3) Out put Channels : 6 channels
4) Output : 70 volts A.C. with Neutral 125 Amps. (Max. Per channel)
5) Input supply on/off control by MCCB (63 Amps.)
6) Output Supply on/off control by MCB (125 Amps.)
7) Output current display by Amps. Meter (Per channel)
8) Output system control by Auto & Manual Switch.
9) Auto control by PID.
10) Manual control by Thermostat

PAD COIL

1. 3.5 KW Dimention : 10 inch X 12 Inch
2. 2.7 Kw Dimention : 8 Inch X 10 Inch
3. 2.7 Kw Dimention : 4 Inch X 20 Inch
